RELAY AND CT PT ANALYZER

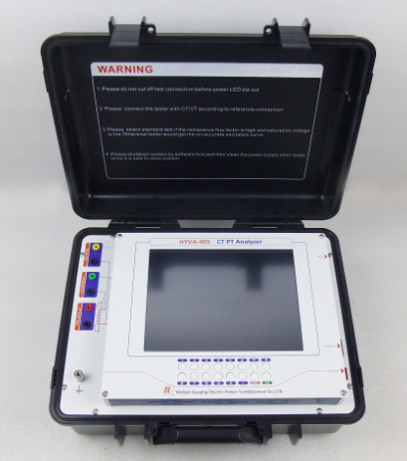

CT PT Analyzer HYVA-405
CT Ratio error and phase error test,
excitation curve and knee point test
Winding resistance measurement,
CT polarity test, CT secondary
burden test, CT nameplate deduce
Ratio error and phase error test of VT
VT Excitation curve test and
Secondary burden test
Winding resistance test of VT primary and secondary
VT and CVT ratio error test with
4KV voltage booster
VT induce voltage withstand test

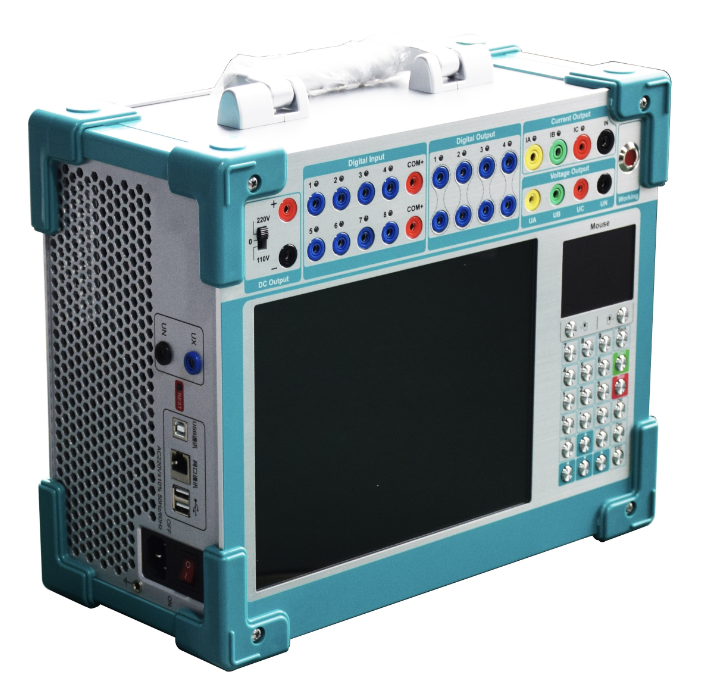

3 Phase Relay tester HYJB-PC3
True color LCD display, tracking ball and optimized keyboard
Voltage and current amplifier
Digital input and output,
Phase current output 0~40A
Output precision 0.2 degree
3 phase parallel current output 0~120A
A long-time phase current 10A
Maxi output power of phase current 420VA

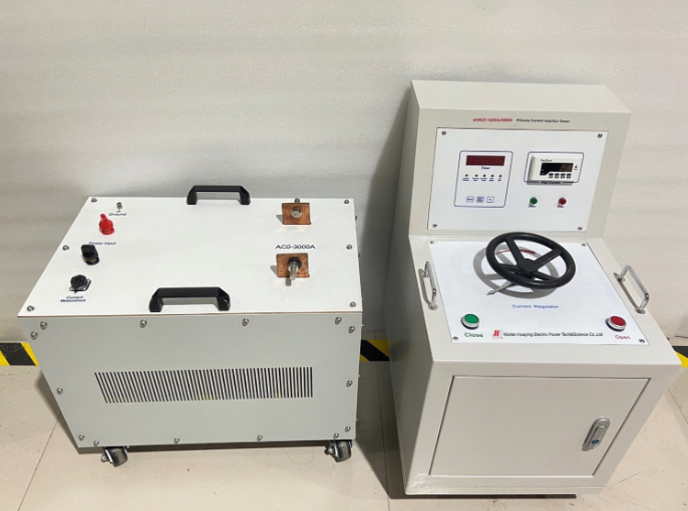

Primary Current Injection Tester HYCIT
A high current to simulate the rated current or fault current in the primary circuit of
power equipment.
Power supply: AC220/ 400V, 45Hz~65Hz.
Typical output current: 500A/1000A / 2000A
Typical output capacity: 3/5/10/15KVA
Circuit Breaker Analyzer HYGK-306A
Onsite test the dynamic characteristics of oil/vacuum/ SF6 CB
12 contacts’ closing time and opening time
Reclosing/ Opening/closing’s asynchronism
Clearance between open contacts/gaps,
over-travel, over-shoot and spring back
Speed at instant of contacts touching
Opening (Closing) max/ average speed
Display and Print V-S/ operating curve
KWH METER ERROR TEST

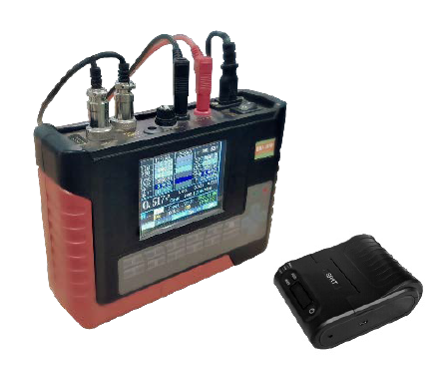

ONLINE SINGLE PHASE METER CALIBRATOR SINOTIE DMT-1010
Compact Size (0.7kg)
Online Test (P2TL)
Error accuracy up to 0.2%
LCD Color & Non-volatile memory
Harmonics record (up to H43)
Waveform and Harmonic Display
RS232 & Wifi interface
Wireless Printer for Quick Report

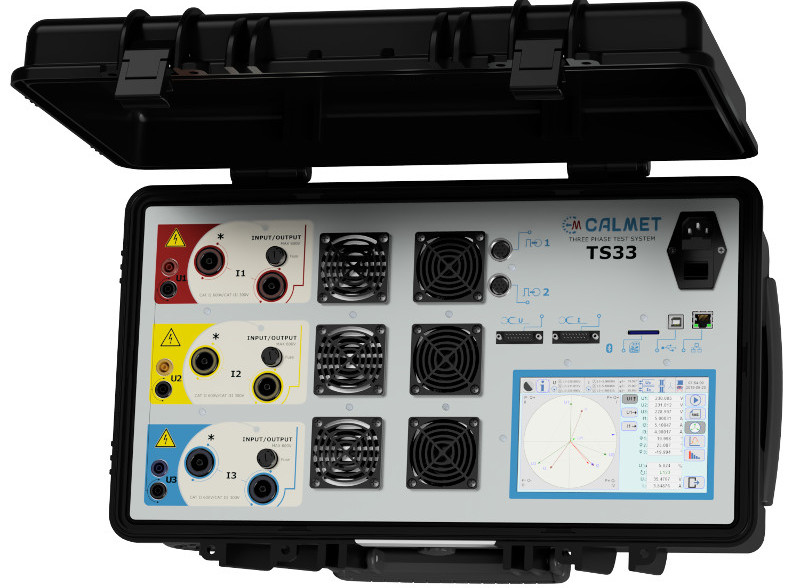

KWH & CT PT CALIBRATOR WITH POWER SOURCE CALMET TS33 CLASS 0.01
Huge output power and compact
Size 22kg case
Quick measurements of power
quality parameters
Automatic tests meters and PT/CT
3-phase voltages:0.5000-600.00V
3-phase currents:1.000mA-120KA

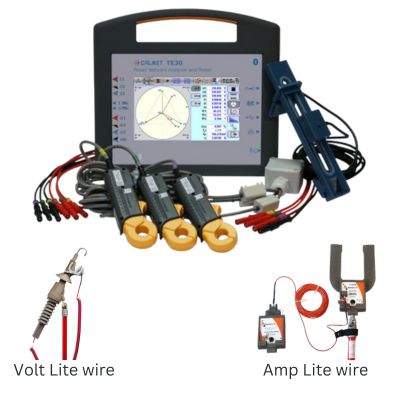

ONLINE 3PHASE METER ERROR TEST CALMET TE30 CLASS 0.05
Online Loss Control (P2TL)
Error Accuracy Class 1 & 0.5
Phasor Diagram analysis
Wiring ratio dan CT burden
Primary and secondary current comparison
Power Quality Analyzer
AMP LITEWIRE dan VOLTLITE STICK 20 KV 2000A for online test

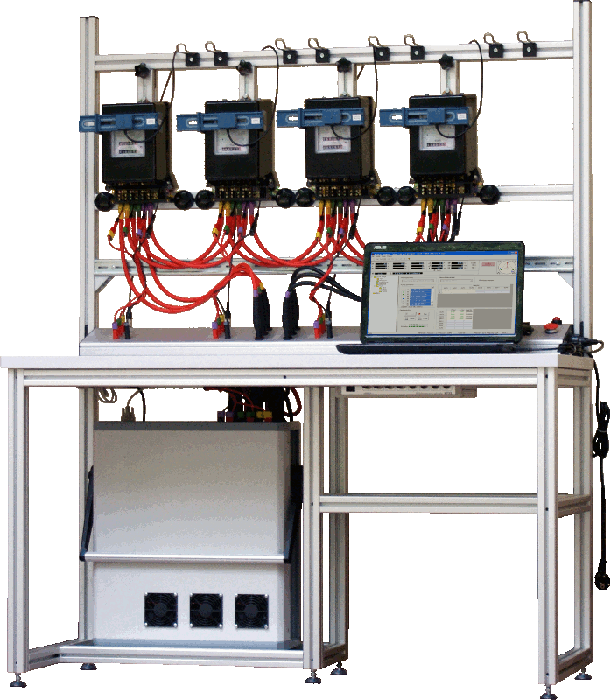

MINI TEST BENCH CALMET TB41
1 ph and 3 ph, CT/VT 4 Positions
PC Software for calibration via USB
3Ph current range 1mA-120A (300VA)
Phase voltage 20-600V (150VA) per channel
Accuracy class 0.02% internal standard meter
Fully automatic Test Procedures/Reports
Simultaneously testing up to 4 meters
Compact module design, size and light weight
Isolation transformers ICT "closed link" meter
TEST AND MEASUREMENT
POWER QUALITY ANALYZER HIOKI PQ3198, PQ3100
Class A international standards
Basic voltage accuracy of ±0.1%
High-voltage, wideband performance
Two-circuit measurement
GPS time synchronization
Voltage ±0.1% of nominal voltage
CLAMP AMPERE HIOKI HI TESTER CM - 3286
Check Harmonics and PF
20 -1000 A AC
150 - 600 V AC
3 - 1200 kW
Freq, Reactivity, phase angle
Bluetooth connection
THERMAL CAMERA FLIR EX
Measuring temperatures from -20°C to 550°C
MSX® technology (thermal imaging)
Wi-Fi connectivity Android/ IOS
IR Resolution :
E4 80 × 60 (4,800 pixels)
E5-XT 160 × 120 (19,200 pixels)
E6-XT 240 × 180 (43,200 pixels)
E8-XT 320 × 240 (76,800 pixels)

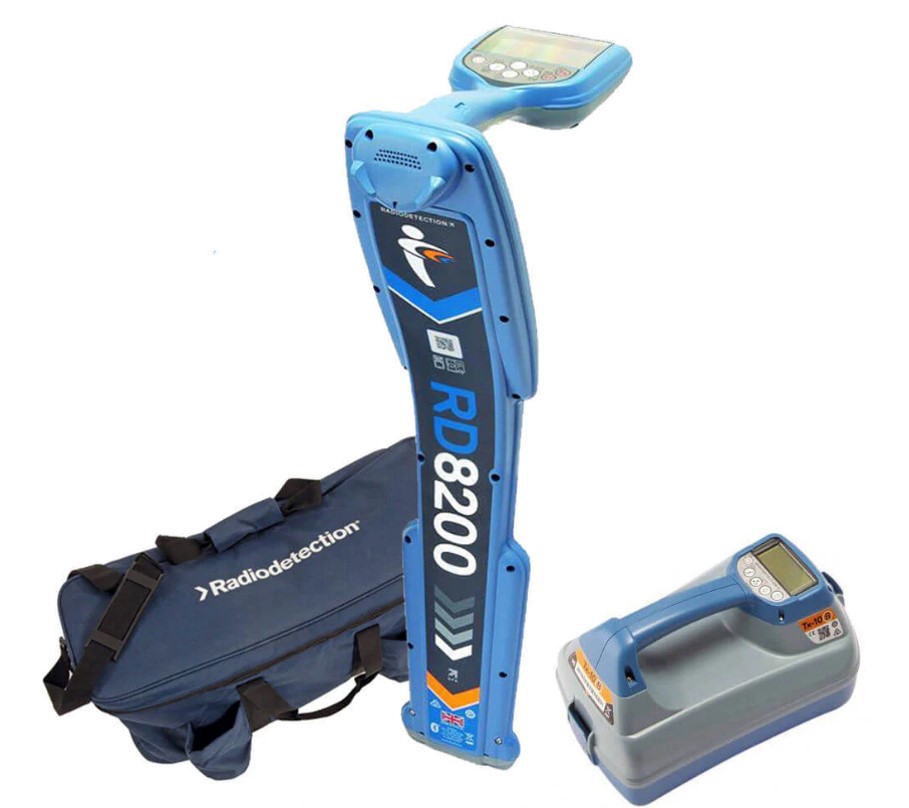

UNDERGROUP CABLE & PIPE LOCATOR RADIODETECTION RD8200
an essential device used to detect and trace the paths of underground cables and utility
lines, including power lines, telecommunication cables, and pipeline systems.
Performance:
Sensitivity: 6E-15 Tesla; 5µA at 1 meter (33kHz)
Dynamic range: 140dB rms/√Hz
Selectivity: 120dB/Hz
Depth measurement precision1: ± 3%
Locate Functions:
Active Locate Modes Five: Peak; Peak+™ (choice of combined Peak & Guidance or Peak &
Null);
Guidance; Broad Peak™; Null
Gain control: Guidance Mode: Automatic.

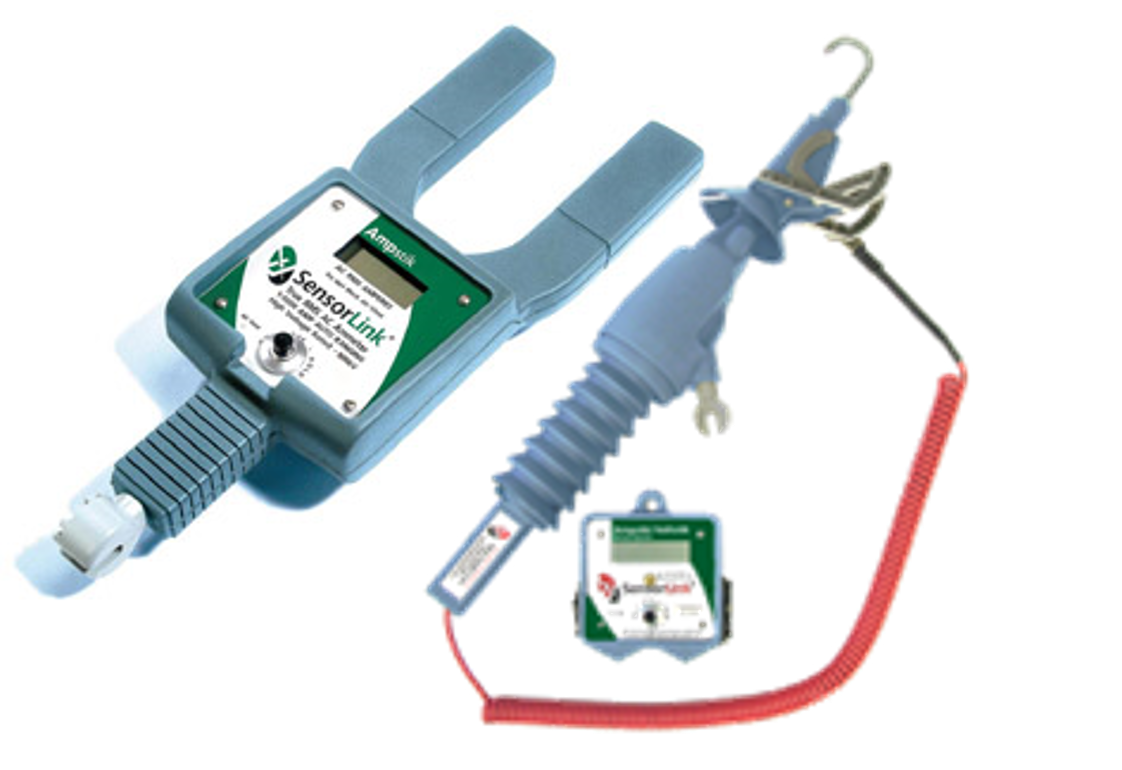

20 kV Amp stick & Volt stick

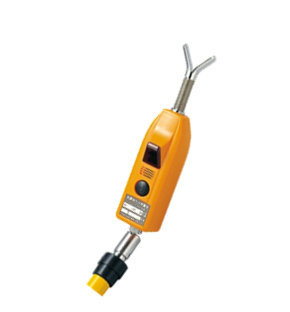

20 kV Voltage Detector

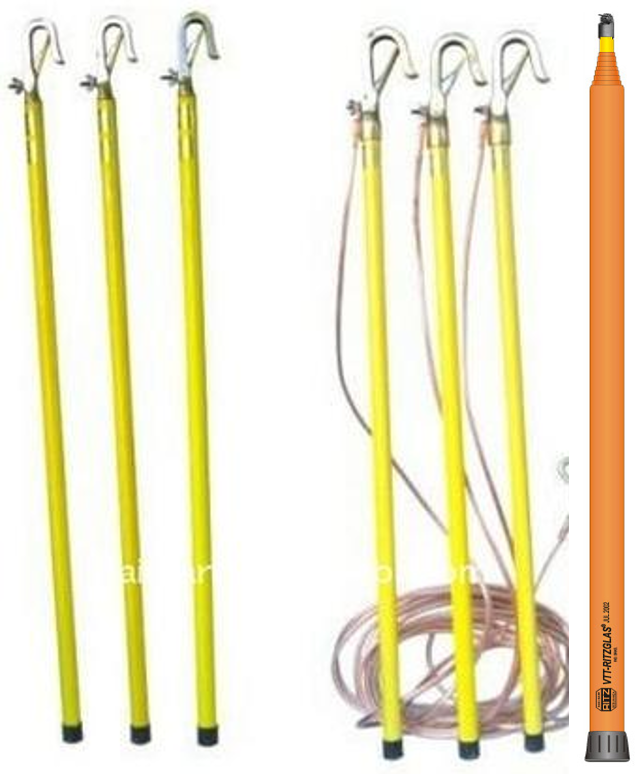

Grounding sets Telescopic stick

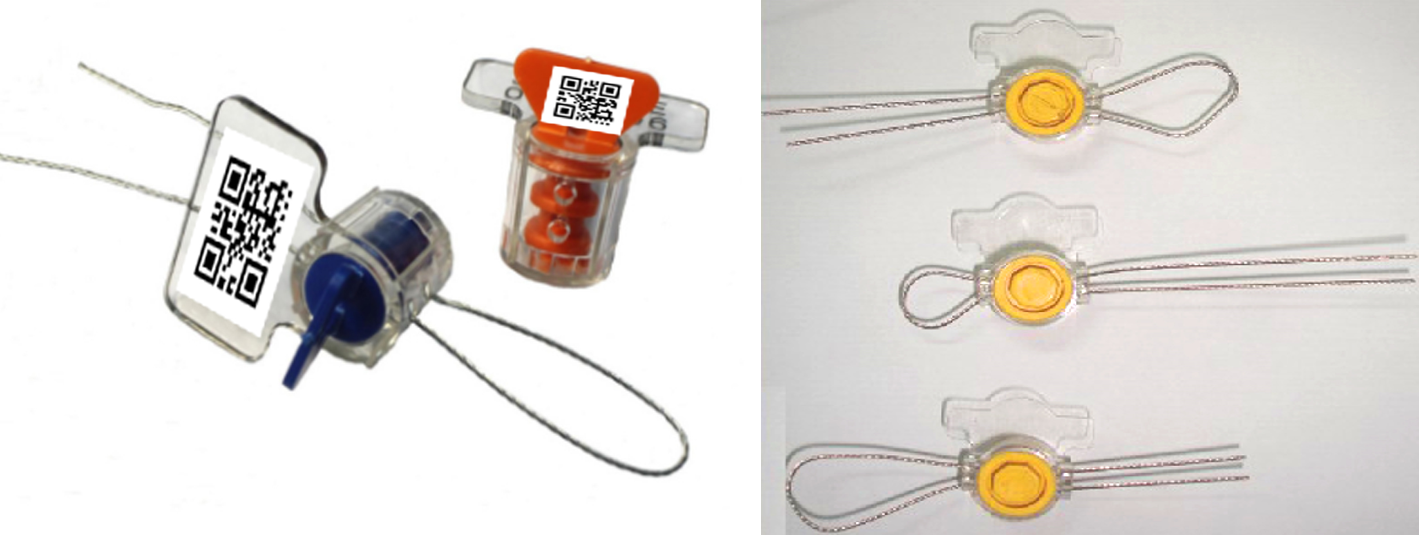

Plastic seals
