Energy Meters

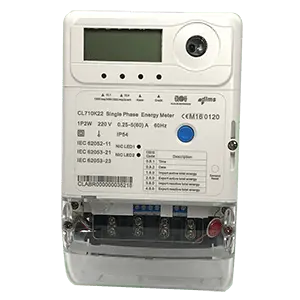

KWH METER LoRAWAN Built-in modem
CL710K22®LoRaWAN
Built-in LoRaWAN modem allows all the operations can be done remotely from the central
server, including meter billing, consfiguration, credit purchase, alarm events report
etc
Connection Wiring 3P4W L1L1-L2L2-L3L3-NN
Nominal voltage 3*230V/400V
Operating voltage range 70% ~ 130% Un
Basic current 5A
Maximum current 0.25 - 5(100)A
Starting current 0.4‰Ib / 20mA
Frequency 50 Hz ± 5%
Accuracy kWh/kVarh Class 1 / Class 2(IEC), Class B(MID)

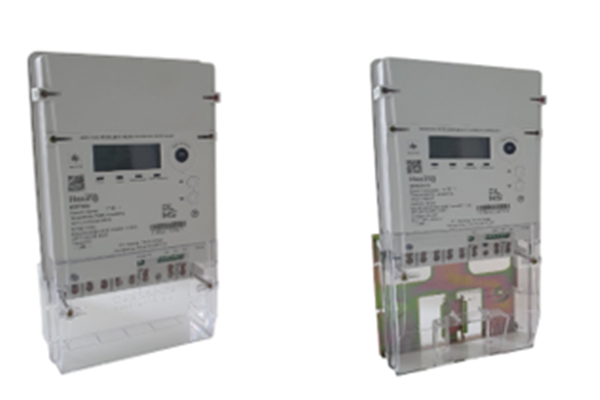

KWH METER WITH RS485
HEXING HXE310 3ph, HXF300 3ph CT
Smart electricity has built in smart systems for recording, transmitting and monitoring
electricity usage online.
kWh, kVARh and demand measurement
Remote control for open/close relay
Load profile for 15 minutes, 30 minutes, 1 hour, etc
Alerting system and Tamper detection
Real-time clock and Calendar
Nominal voltage 3×231/400V (HXE310),
3×57.7/100V-3×231/400V (HXF300)
Accuracy kWh/kVarh, Class 1 / Class 2 (IEC) (HXE310)
Class 0.5S / Class 2(IEC) (HXE300)
Communication Mode : RS485 to be connected to
4G modem or LoRA RTU
Gas Meters

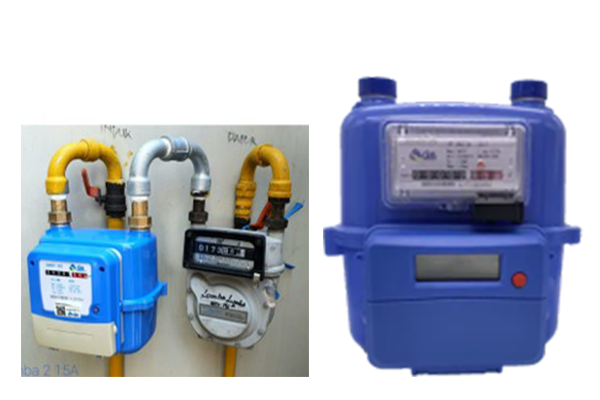

GAS METER
G1.6 / G2.6 / G4
Two-pipe Diaphragm gas meter G1.6, G2.5, G4 Cooperated with ZENNER International GmbH &
Co. K, Atmos®LoRa Series are credit gas meters
employing the Sindcon's advanced technology in IOT to build a reliable wireless
communication system for gas meter.
Norminal flowrate (Qn) 1.6 / 2.5 / 4 (m³/h)
Maximum flowrate (Qmax) 2.5 / 4 / 6 (m³/h)
Minimum flowrate (Qmin) 0.016 / 0.0025 / 0.04 (m³/h)
Maximum operating pressure 0.5 Bar
Maximum permissible errors ±1.5%
0.1Qmax≤Q≤Qmax ±3% / ±3% / ±3%
Qmin≤Q≤0.1Qmin ≤2 / ≤2 / ≤2 (mbar)
Max pressure loss 99999.998 m³/h
Display field max 0.0002 m³/h
Display field min 1.2 dm³
Cyclic Volume 1.5 class
Working voltage 4.5/6 V
Communication Protocol Standard LoRaWAN Class A
Frequency support 470MHz, 916MHz, 923MHz
TX Power +20dBm
RX sensitivity Down to-137dBm
Bandwith 125KHz
Local LCD Display Yes
Water Meters
.png)
WATER METER
(Dn.15 - Dn.25) The Mercury®LoRa
Series LXSGF model is IMPELLER (turbine) water meter with build-in valve, dry type
register for residential application with sizes from Dn15 to Dn25. LXSGF model consist
of mechanical water meter, electric ball valve, intelligent unit (IU), with LoRaWAN
wireless technique and bult-in lithium battery
Working voltage 3.6V
Data collecting way Dual Magnetic Sensor
Communication mode LoRaWAN
Working frequency 916 --- 919MHz (25mW EIRP with duty cycle of
<= 1% frequency hopping or LBT) 919 --- 923MHz (500mV EIRP)
Channels 8 settable channels with bandwidth of 125kHz
TX power 14dBm
RX sensitivities Down to - 137dBm
Comm. Distance 3km to 10km (eyesight distance in open space)
Data rate 980bps ~ 3.125kbps (adaptive data rate)
Listen Before Talk (LBT) Yes
Standby current
<=40uA
Environment temp 0.1 ~ 50°C

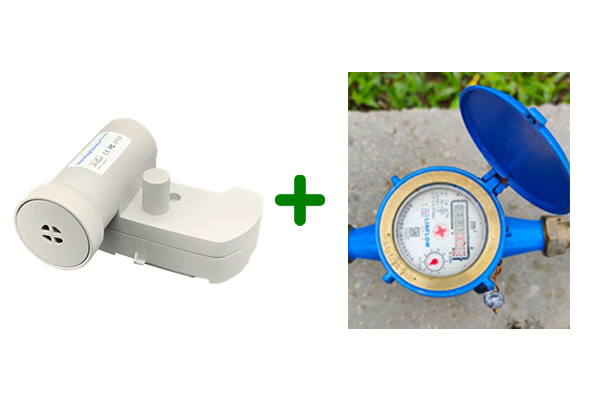

Cybel Nomag Sensor
Cyble Nonmag Sensor
NonMag-Sensor is completely compatible with all Iron water meter
and gas meter pre-equipped with the Cyble target.
Easily retrofitted and installed on meters already on the field.
Working Voltage 3.6V
Data Collecting Way Non-magnetic Transmission
Communication mode LoRaWAN
Working frequency 920MHz - 925MHz
Channels 8 settable channels with bandwith of 125kHz
TX power 14dBm
RX sensitivities Down to -137dBm
Comm distance 3km to 10km (eyesight distance in open space)
Data rate 980bps~3.125Kbps (adaptive data rate)
Listen Before Talk (LBT) Yes
Standby current
<= 40uA
Environment temperature -10°C - 50°C
Data Report Interval 15min | 30min | 1hour | 6 hour | 8 hour | 24 hour
Battery life (year) 5 | 6 | 7 | 8 | 8 | 8
Lora Communication Device

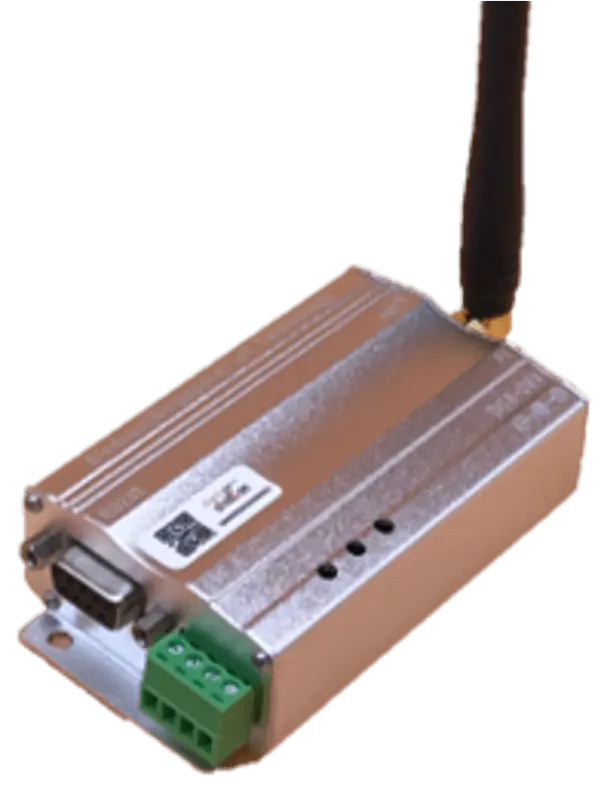

RS 485 Lora Bridge (RTU)
RS485-LoRa bridge is a data channel between traditional devices with RS485 output
(Modbus Protocol) and LoRa gateway.
Power Supply -30V DC
Application Indoor
Standby Current 20mA
MCU Arm® 32-bit Cortex®-M0
Frequency 470-510MHz, 863-870MHz, 902-926MHz
TX Power Up to +20dbm
RX Sensitivity Down to -137dBm
Channels 8 settable channels
Data rate Adaptive data rate
Listen Before Talk (LBT)
LoRa Class Both Class A & Class C
Power supply isolated & RS485 interface isolated

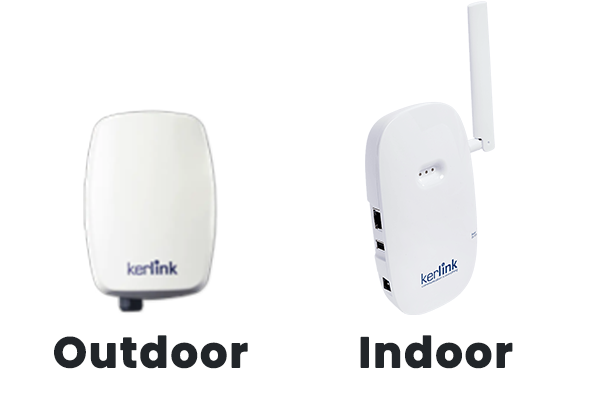

LoRA Gateway
An ideal gateway to support you in your smart city, smart industry or every smart
project, because it combines both the simplicity of installation a unique superior
coverage and operational excellence.
Sniffer for LBT (Listen Before Talk)
Built-in with hight rejection SAW filters
Rx Sensitivity -141 dBm (SF12)
TX Power : configurable from 5dBm to 27dBm
Temp range -40°C +60°C, Humidity 95%
Size 265 x 165 x 100 mm
Weight 1,4kg (mounting kit included)
Spectrum analysis compliant
Backup batteries to allow the clean shut down of applications in case of power cut
Casing IP6 Alu (Black), Polycarbonate (Front), Inox (mounting kit)
Surge protection of the RF LoRa link (option)
CPU ARM Cortex A9, DDRAM 256MB, 8GB eMMC (6GB available for user)
CCTV & Electronic Security

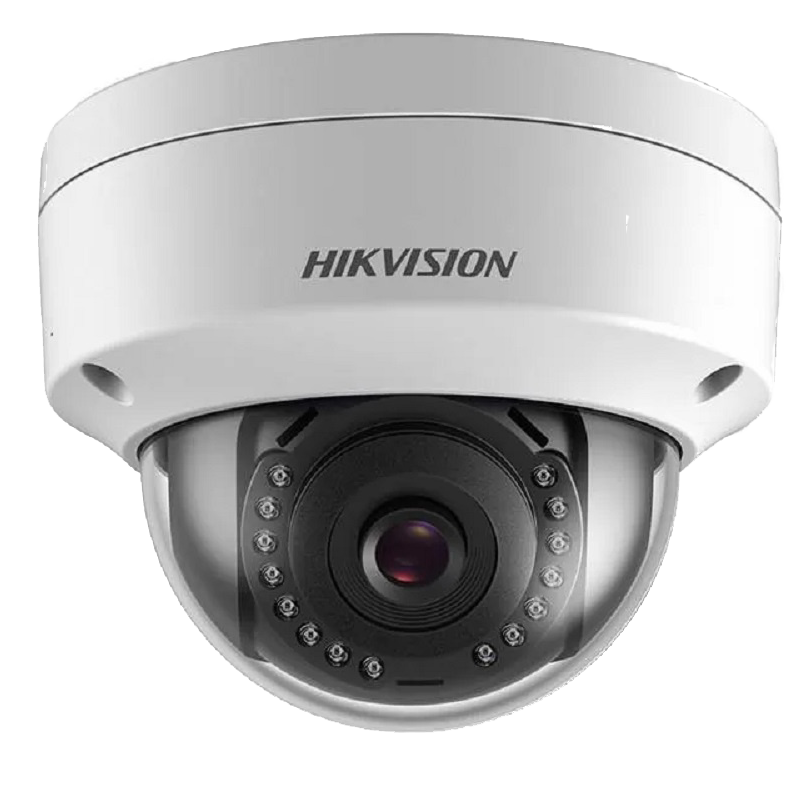

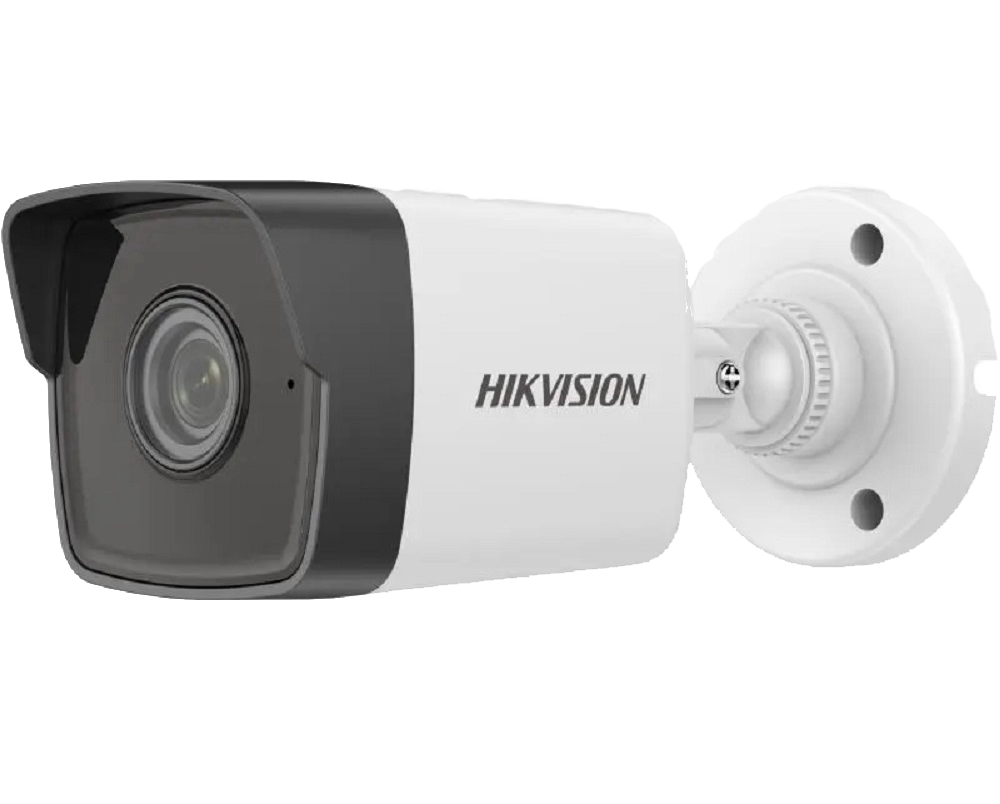

Indoor IP camera

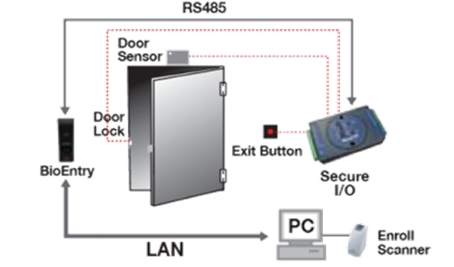

Access Control
Burglar Alarm
Indoor IP camera

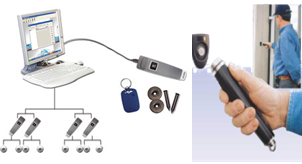

Guard Tour Patrol

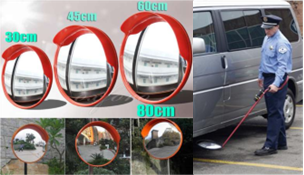

Convex Mirror

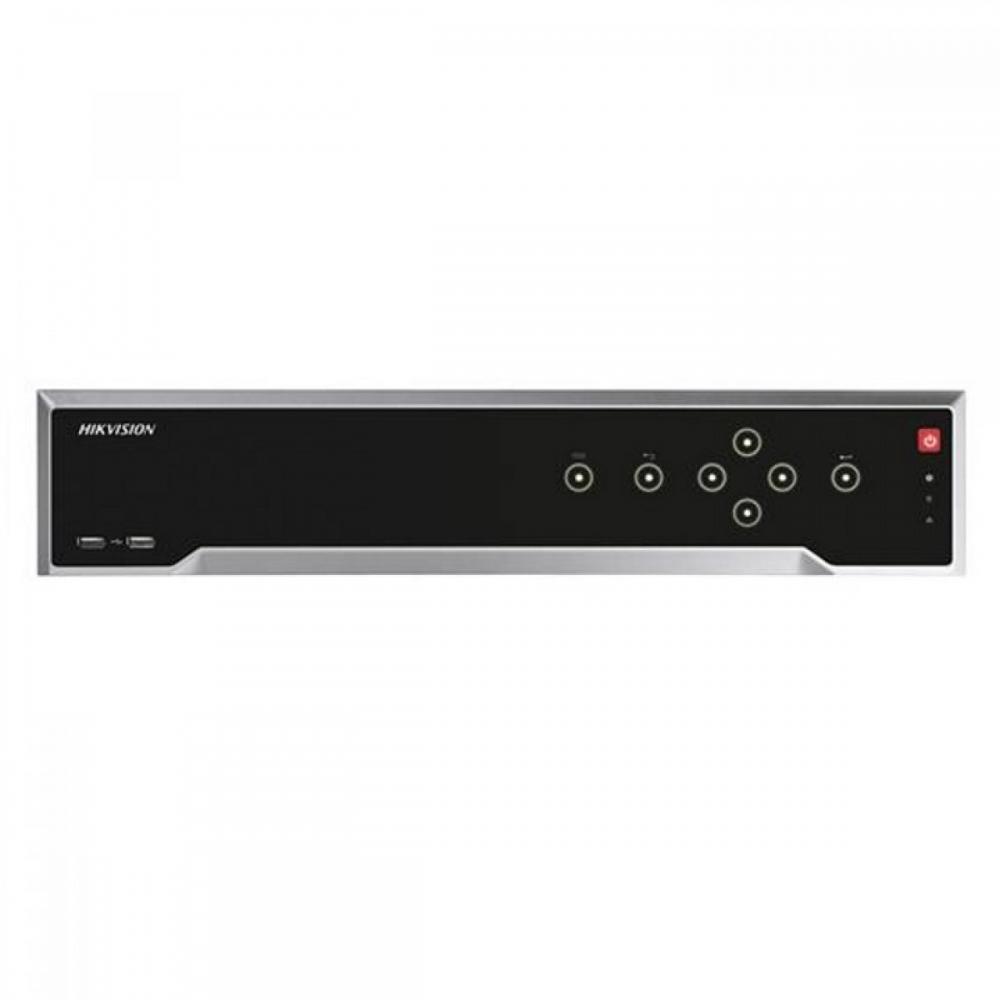

Network Video Recorder
