Relay Protection

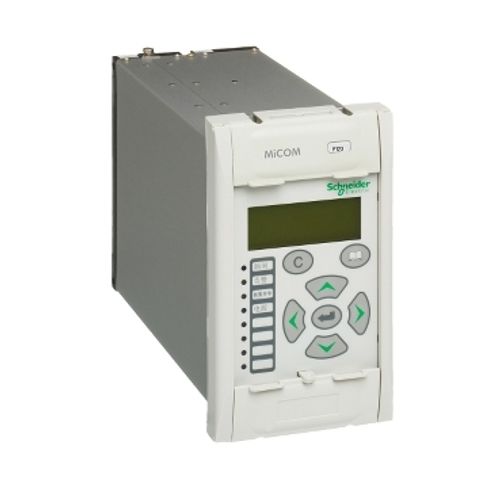

OC AND GF FAULT PROTECTION RELAY MICOM P123
3Ph Over current (50/51P), Ground fault (50/51N) Undercurrent (37), Broken
conductor (46BC) Circuit breaker failure (50BF), Autoreclose (79) Modbus
protocol/ DNP3, Cold load pick-up lockout (86), thermal overload protection (49)
Phase undercurrent (37)
Negatif sequence overcurrent (46)
Restricted earth fault (64REF)
Number of inputs 4 current input CT...X/5 A and X/1 A

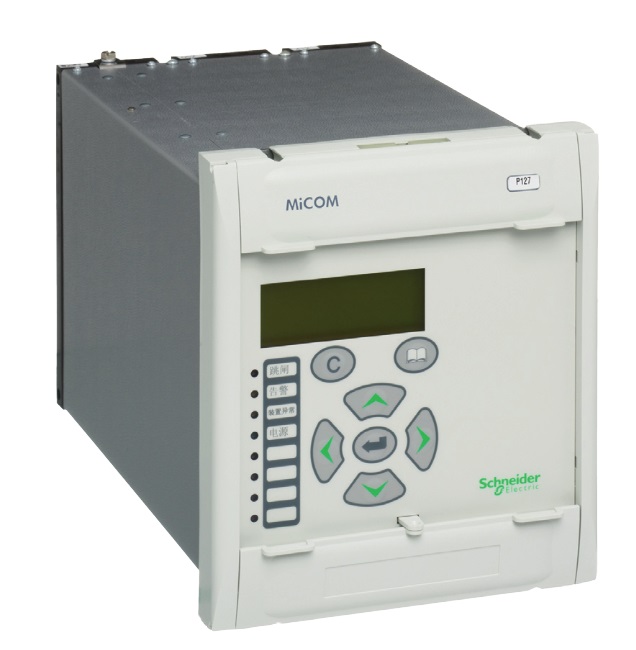

FEEDER MANAGEMENT RELAY MICOM 127
3Ph Over current (50/51P), Ground fault (50/51N)
Phase & Ground Fault directional 67(P), 67N
Restricted earth fault (64)
Negative sequence overcurrent (46)
Undercurrent (37), Broken conductor (46BC)
Circuit breaker failure (50BF), Trip Circuit Spv (TCS)
Over/Under voltage (27/59) , Residual over voltage (59N), Autoreclose (79)
Modbus protocol/ DNP3

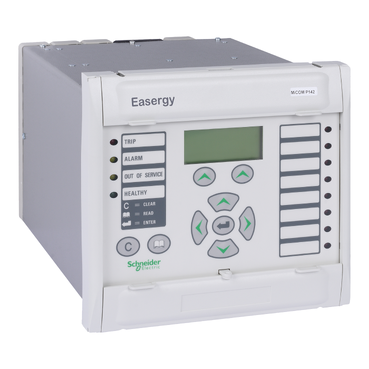

FEEDER MANAGEMENT RELAY IEC61830 SAS MICOM P142 ,P143
3Ph Over current (50/51P), Ground fault (50/51N)
Phase & Ground Fault directional 67(P), 67N Restricted earth fault (64)
Negative sequence over current (46)
Undercurrent (37), Broken conductor (46BC)
Circuit breaker failure (50BF), (TCS)
Over/Under voltage (27/59),Residual overvoltage (59N), Auto reclose (79),
IEC 61860 protocol SAS/ DNP3

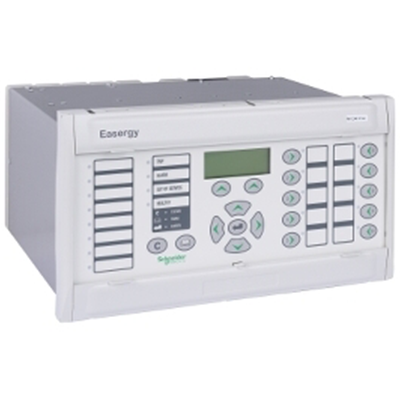

LINE CURRENT DIFFERENTIAL RELAY MiCOM P543
3ph Overcurrent/ Groundfault 50N/51N,
Directional earth fault, Undervoltage (27),
Overvoltage (59), Negative/unbalanced sequence (46)
Directional phase overcurrent,
Thermal overload protection (49RMS)
Watt metric grounding, Synchronization - check (25)
Underfrequency (81L)
Over frequency Number of inputs16 discrete
5 CT current inputs...X/5 A and X/1 A,
4 voltages Number of outputs14 discrete
Communication port protocols DNP3, IEC 61850,
Ethernet, Modbus RTU, Event recording

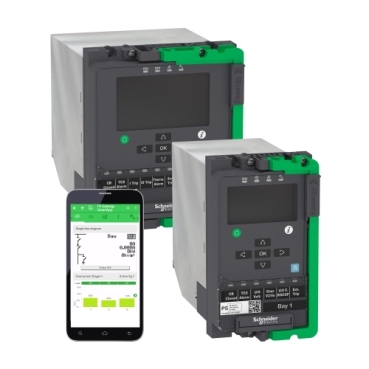

WITHDRAWABLE PROTECTION RELAY EASERGY P3, P5
Built-in arc flash protection
Advanced cybersecurity compliant to IEC 62443
Intuitive withdrawable design with backup memory
Plug and play hardware expansion
EF, Dir OCR, Dir EF, UFR, OVR, 32 Reverse Power 10DI + 8DO + Back Up Memory
Protocol IEC
61850 for SAS and DNP 3 serial for DCC Simultaneous
Generator ATS AMF and UPS

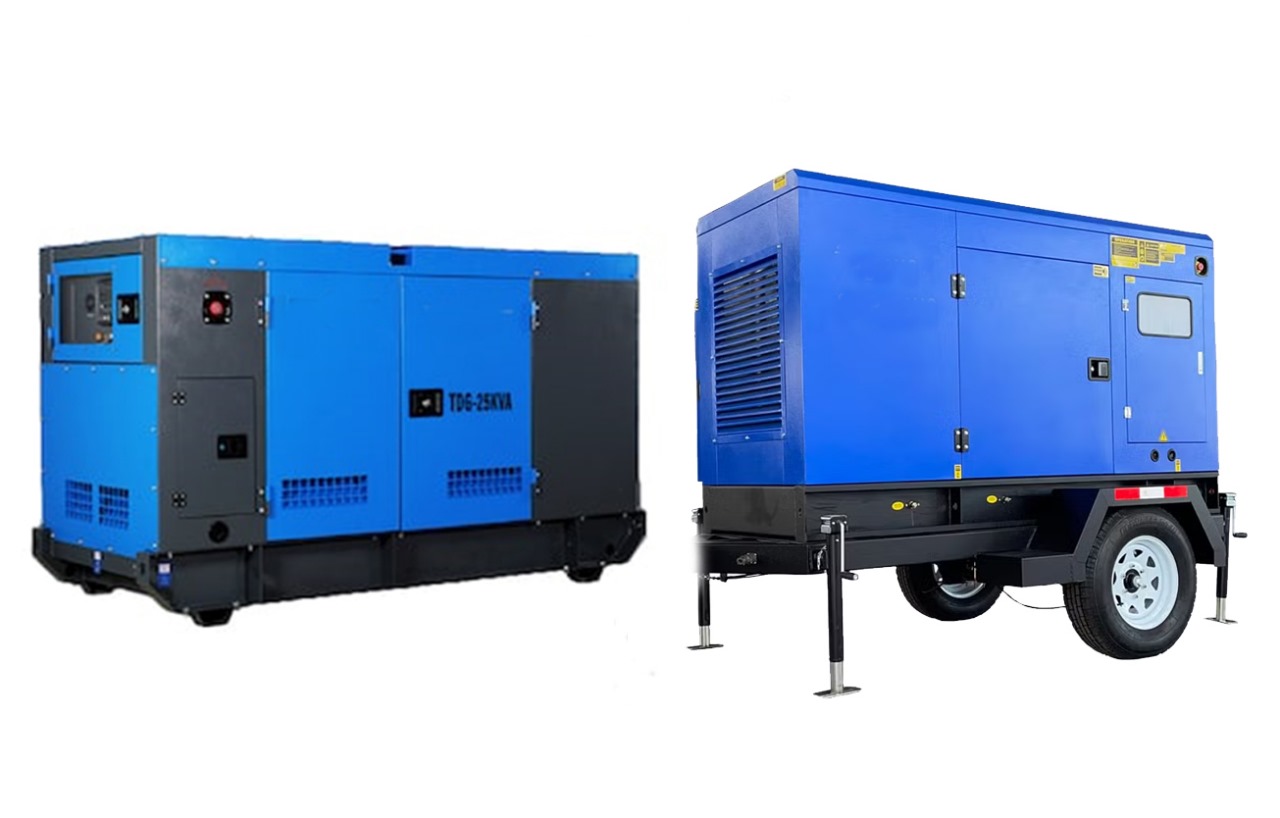

GENERATOR SET
Silent Type, Trailer (option)
Engine : Cummins/Perkins, Alternator : Stamford
Power Output : 50 - 1500 kVA, Phase 3 (Three) 3 (Three) Frequency 50 Hz @1500RPM 50 Hz
@1500RPM Voltage 220 / 380 V 220 / 380 V
High quality, reliable and complete generating sets.
Easy for operation and maintenance.
Compact structure &high-strength chassis.
Base frame design incorporates an intergrade fuel tank for at least 8 hours running (up
to 650KVA).
Anti- vibration pads are mounted between the engine/alternator feet and the base
frame.

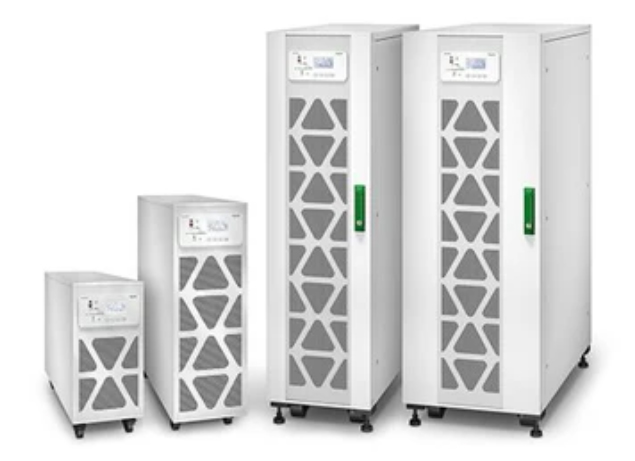

UPS
The UPS provides continuous power from the internal battery until utility power returns
to safe levels or the battery is fully discharged.
Intuitive LCD interface
Capacity 1-30kVA, Predictive replace battery date
Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery - Battery failure notification - Provides early-warning
fault analysis on batteries enabling timely preventive maintenance
Serial Connectivity - for Scada application

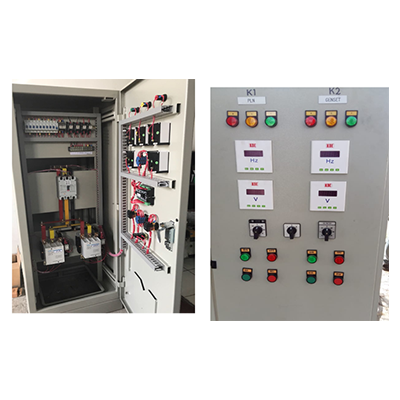

ATS AMF
The electronic control unit (AMF) automatically detects the conditions of absence and
return of the mains, managing both the startup and shutdown of the generator, and the
switching of the contactor (ATS).
Powder coating Box Panel Wall mounting (Custom dimension)
COS 4P 160A Transfer switch Motorized
Digital metering Volt Ampere Frequency LED display
Mode Auto - Manual or selector A-O-M
Load indication PLN-Load-Genset dengan pilot lamp
Overcurrent protection MCCB 3P 125A , Setting Close delay dan return delay
Automatic Battery charger 12/24V 5A Under/over voltage Protection phase failure
relay
Modul Automatic Main Failure (AMF), Deepsea ATS controller
Energy Metering

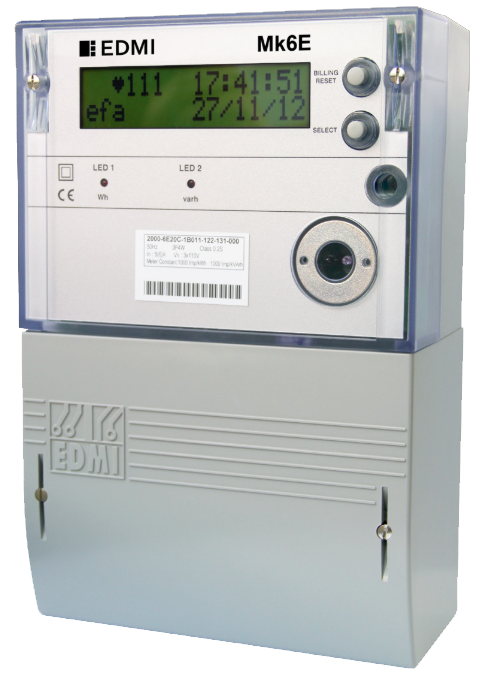

KWH METER CLASS 0.2S EDMI MK6E
Class 0.2S (IEC 62053-22, IEC 62052-11)
Nominal Voltage (P-N) 57 to 240 V
Current : CT 1/4 A, 5/20A
Auxiliary Supply : 240V, 110V
Measurement Modes : 3P2W & 3P3W
Communication : RS232/RS485 Modbus protocol

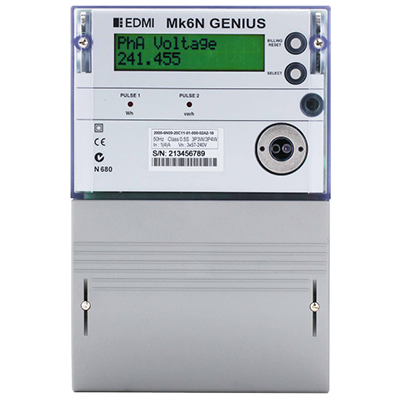

KWH METER CLASS 0.5S EDMI MK6N
Class 0.5s (IEC 62053-22, IEC 62052-11)
Nominal Voltage (P-N) : 57-240 V
Current : CT 5(10)A CT
Serial Port RS232 & RS 485
Measurement Modes : 3P2W & 3P3W
Aux Voltage : 100V-240 V AC/DC
Serial ports : RS232 and RS485 Modbus protocol

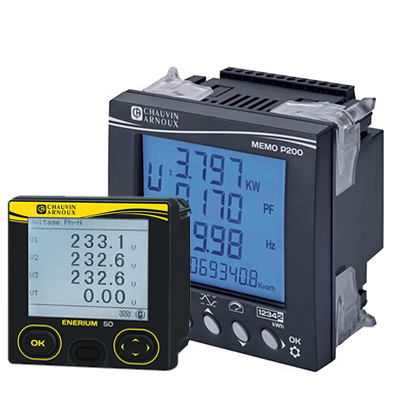

POWER QUALITY METER
CHAUVIN ARNOUX MEMO / ENERIUM
Accuracy suitable for the most critical MV/LV
Measurements with The operating history and diagnostic tools
Accuracy class (as per IEC 61557-12) 0.5 or 0.2
Number of alarms 16
Time/date-stamped events recorded 64
Power quality, THD / PF / Tan φ
Max. harmonic orders 25/50
Qualimetry as per EN50160
Capture of V, U, I & In waveforms 16
Storage of the last 1,024 time/date-stamped
events (dips, outages, overvoltage)
Inputs / Outputs Max. 8
POWER QUALITY ANALYZER

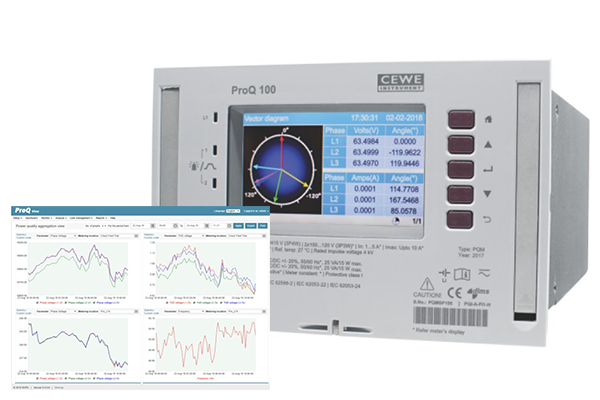

CEWE ProQ 100
To Monitor and record Lfl, Pst and Plt flicker, dips/over voltages / outages
Energy Class Accuracy 0.2S
Power Quality Revenue meter
High precision revenue metering
Harmonic analysis for power quality problems
Voltage & current up o 50th harmonic
Power quality events logging for sag, swell, interruption and rapid voltage change (ITIC
Curve)
Transient recording and reporting
Connection types HV4/HV3/LV4
Voltage range 3 x 57.7/100 V….240/415 V (3P4W)
Current range In: 1..5A | Imax: up to 10 A (configurable)
Scada System
INDUSTRIAL LTE ROUTER

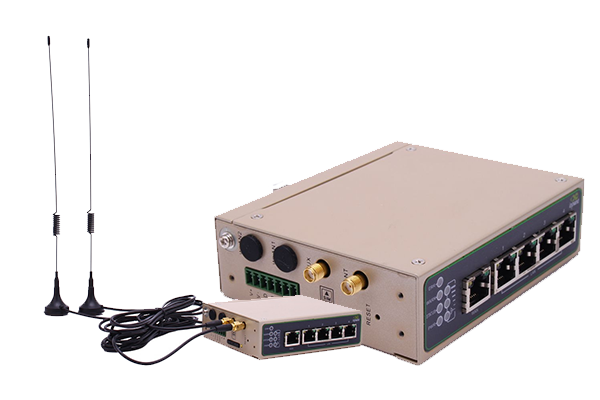

INHAND InRouter615-S Series
Supports 4G LTE CAT4 high-speed network, as well LTE CAT1 and CAT-M low-rate
networks
Supports WLAN
5 Ethernet ports, WAN/LAN/VLAN
Multiple VPN functions
Ethernet Port :
1*10/100Mbps fast Ethernet WAN port
4*10/100Mbps fast Ethernet WLAN ports
1.5KV network isolation protection
Power Supply : DC9-26V, 36V expandable
Industrial Serial Port : RS-232/485 x 1
ESD protection: 15KV
SIM Card : Drawer-type card slot x 1
Part models: Drawer-type card slot x 2
Reset Pinhole reset button
Antenna Connector : 3G/4G: SMA x 2, WLAN: RP-SMA x 2

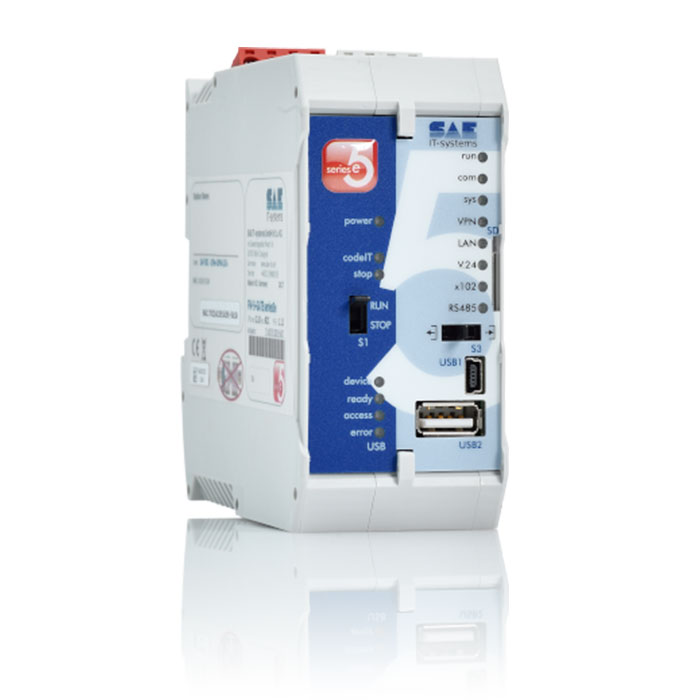

REMOTE TERMINAL UNIT
FW-5-GATE
2 Ethernet LAN TCP/IP connections
2 RS-485 , RS-232/V.24 interface
Temp sensor, -20° to 100° C
Power supply (20 to 72 V DC)
Protocols IEC 61850 IED,
IEC 60870-5-101 IEC 60870-5-103
IEC 60870-5-104, TCP/IP DNP3
IEC 62056-21, Modbus RTU/TCP

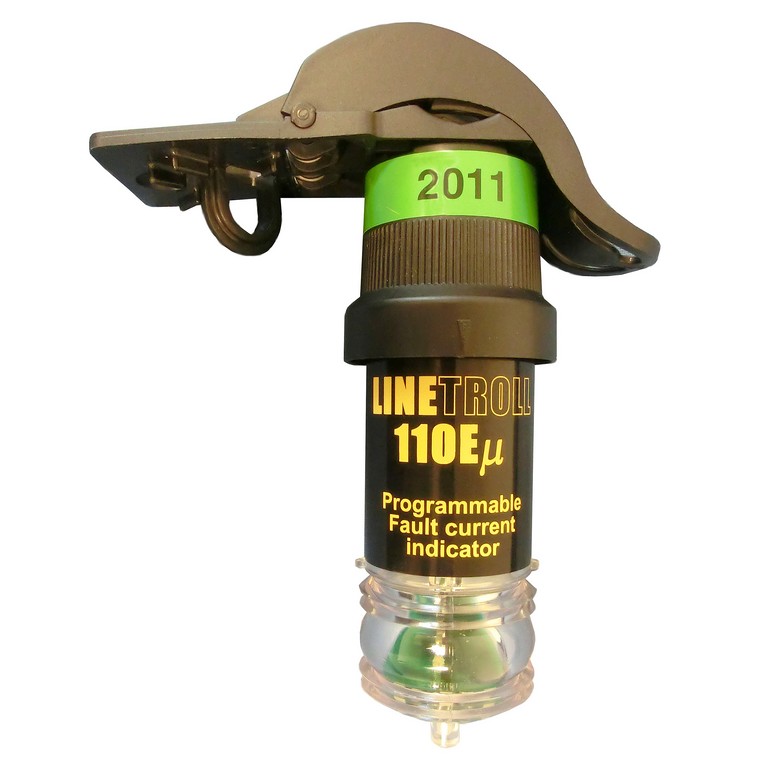

FAULT INDICATOR
LineTroll 110EμR
Distribution Networks (6-50kV)
LineTroll 110EμR conductor mounted
indicator for detection of PtG and
PtP faults in overhead line networks.
A built-in 2.4GHZ radio device communicate with receiver/ RTU/ Scada Master
DC Power Supply
RECTIFIERS/BATTERY CHARGER
RECTIFIER 220 VAC to 48 VDC
Automatic voltage control & current limiting Thyristor (SCR) controlled and Suitable for
all industrial Lead acid and Ni-Cd/ Lithium batteries
Capacity : 10 - 200 A
Space Battery : up to 4 batteries
Nominal Input voltage : 220 VAC single phase
Nominal Output voltage : 48 VDC
Output : Load dan battery charge
Type Charging : Boosting, Floating dan Equalizing
Ambient Temperature : 0-40 C
Surge Protector : up to 4 kVA
Overvoltage Protector : up to 500 VAC
Display (Analog/ digital) : Load current, Battery charge
Current, Voltage, Alarm/indicator overload, voltage input and output fail
Communication : RS232, RS485/ Modbus, TCP/IP

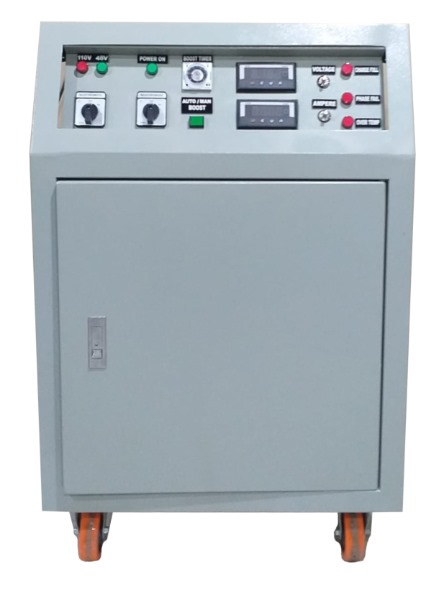

MOBILE RECTIFIER
110/48 VDC -60A*
To provide mobile DC Supply with integrated batteries
Full Bridge Thyristor Controlled
Input Voltage 3phase 380VAC
Double Voltage output 48/110 VDC (Selectable)
Adjustment 36-70/ 89-157 Vdc
Boost timer Adjustment O-12 jam
Output Current Capacity 60A dc (max)
Metering Ampere meter DC output Digital, Voltage meter DC output Digital
Status Indicators & Alarms 48/110 Vdc ON and Rectifier Fail

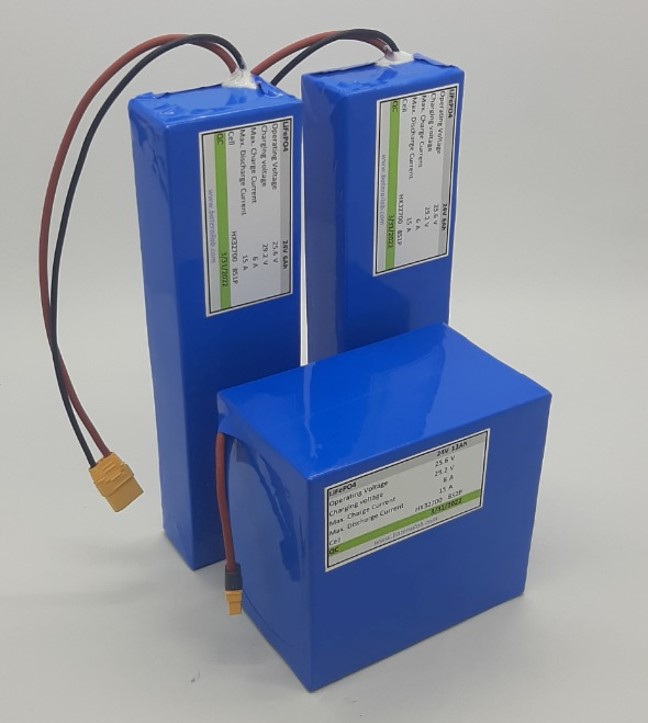

LIFEPO4 BATTERY
Customized dimension based on Panel dimension
Voltage 12/48/110VDC, Capacity 5-30 VA
BMS 60A, maximum charging 30A
Maximum Load 60A
Enclosure Fiberglass sheet + PVC
XT60 connectors
Application
DC power supply, Engine starting battery,
electric bicycle/motorcycle/scooter,
power tools and Solar Lighting
INVERTER 48 VDC to 220 VAC
Capacity : Up to 10A
Nominal Input Voltage : 220 VAC single phase
Nominal Output voltage : 220VAC
Surge Protector : up to 4 kVA
Overvoltage Protector : up to 500 VAC
Transformer Oil Purifier
PURIFIER MACHINE
Mainly used to improve insulation oil by removing trace water, gas, particulate
matters
etc. to boost performance and life time of transformers, circuit breakers, mutual
inductors and cable.
Capacity : 2000, 4000, 6000 liter/hour,
Process : Double stage : heating to remove water from oil, gas (de-gas) and remove
tiny
particles (purify) eq. acetylene, hydrogen, methane dan other particles. Trailer
provided mobility.
Key projects : PLN UPK Kapuas, UP3 Ketapang and UP3B Kalbar, UPK Tambora NTB, UPK
Maluku
PORTABLE OIL TEST SET
MEGGER OTS80PB
Test voltages 60 kV / 80 kV
Lock in precision oil vessel
lockable gap setting
Flat electrode gap gauges
Oil Temperature Measurement
Easy to clean
Distribution Transformer Monitoring

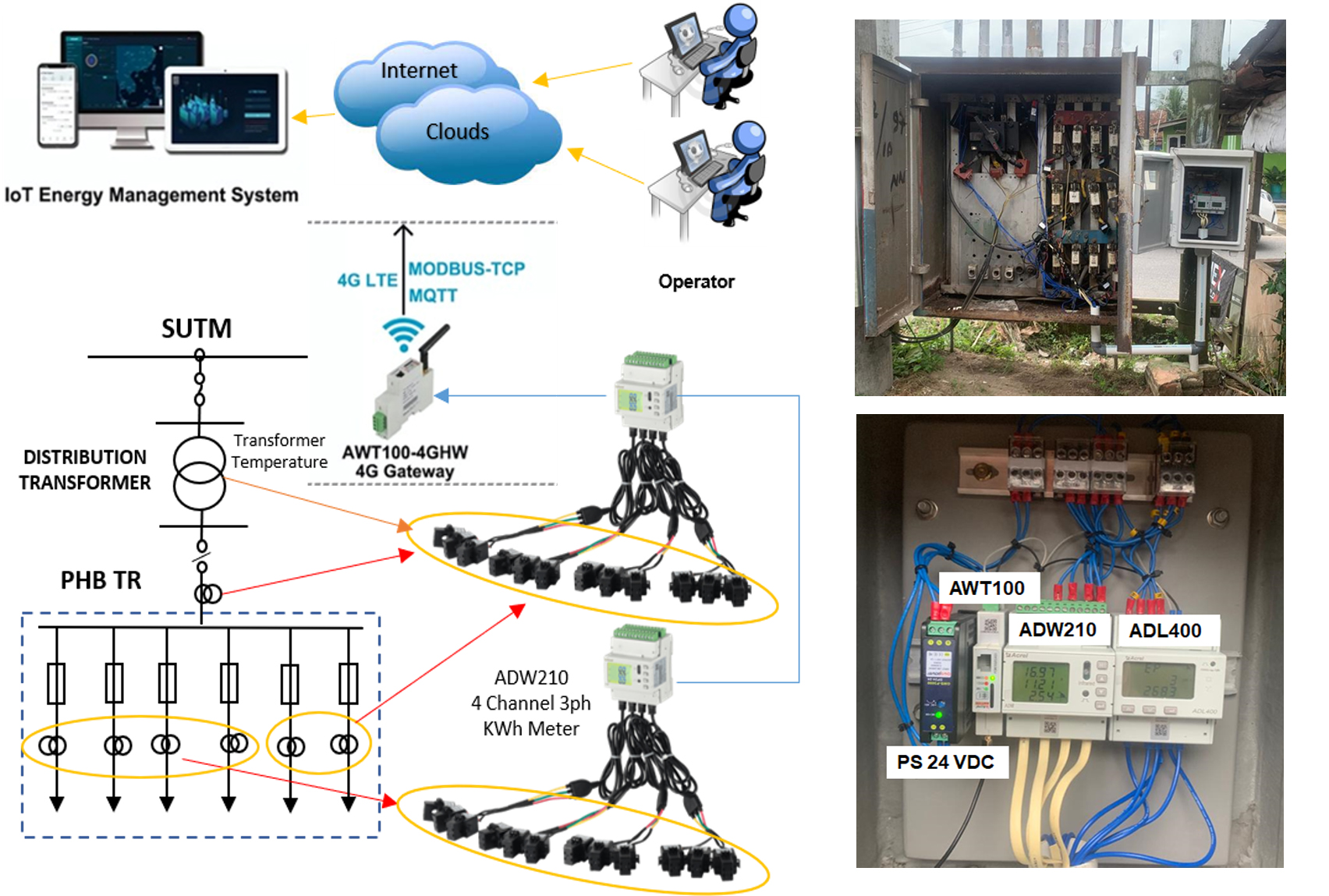

INSTALATION PHOTO
Meters measure Energy on Distribution transformer incoming and LVSB feeders

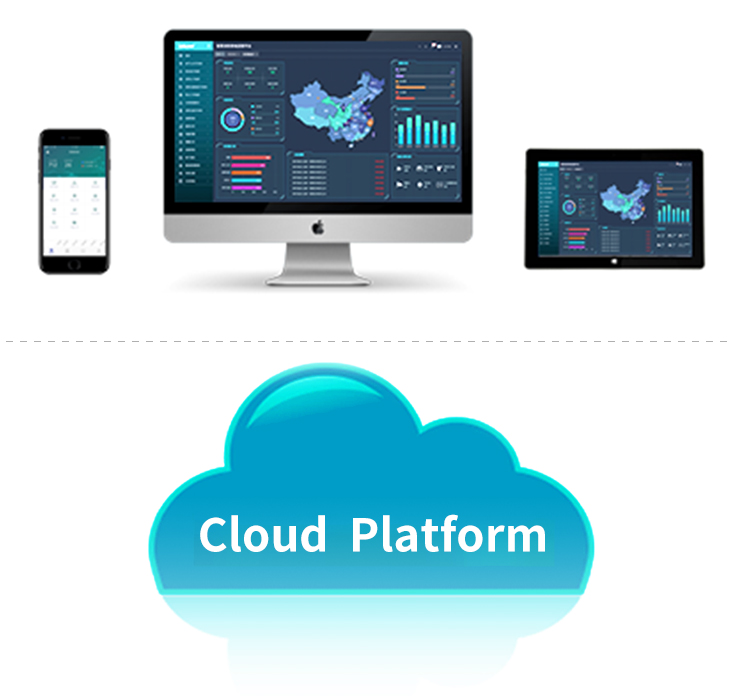

Energy and electrical parameters are monitored online via Cellular gateway to IoT
Energy
Management system with Integration of Billing Management and Online Losses
Monitoring
(OLM)
Billing and Energy-Losses reports generated can be accessed by clients through
internet
connection everywhere

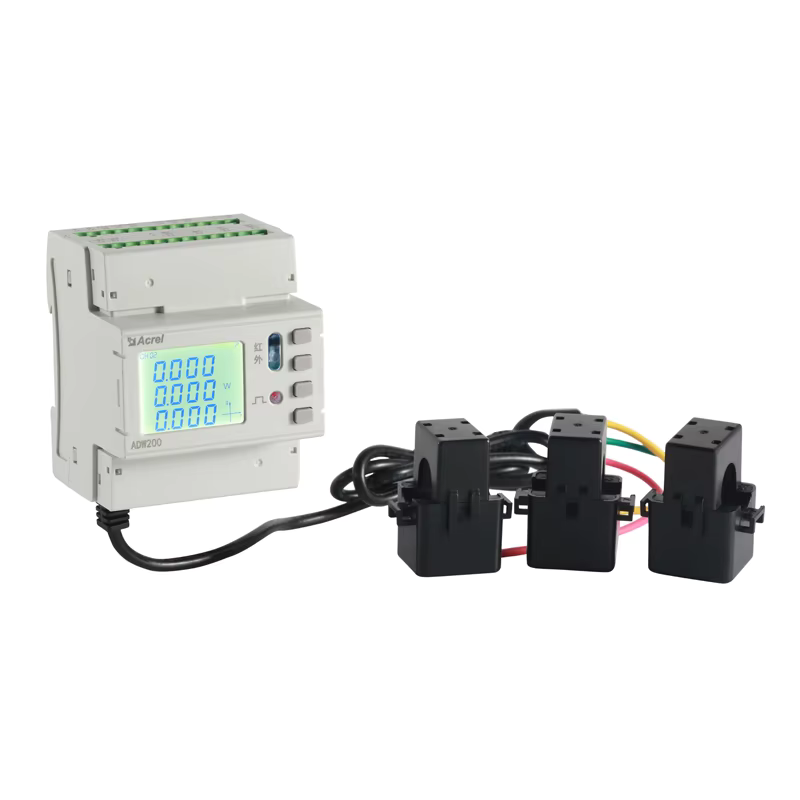

4 CHANNEL ENERGY METER ACREL ADW201
3P3P, 3P4W, Kwh Cl.1 KVARh Cl 2
3X220/380 V , 3X 5A, 3X 100A
Measure Up to 4 circuit 3 phase
Measure all electric parameters
Split core open loop CTs
External function module
RS485 Modbus RTU Lora/4G routers

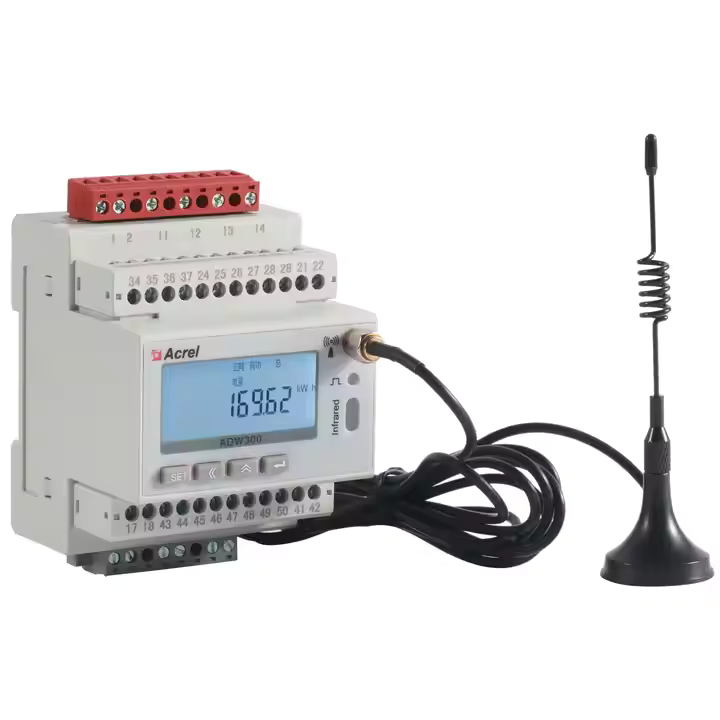

BUILT-IN 4G MODEM ENERGY METER ACREL ADW300
3P3P, 3P4W, Kwh Cl.1 KVARh Cl 2
3X220/380V, 57.7/100 V
3x1(6)A AC (via CTs)
Communication: 4G LTE, WiFi, LoRa, LoRaWAN, NB-IoT,
RS485(MODBUS-RTU)
Application Scenario: Building, Factory, Smart Grids, DB Room etc

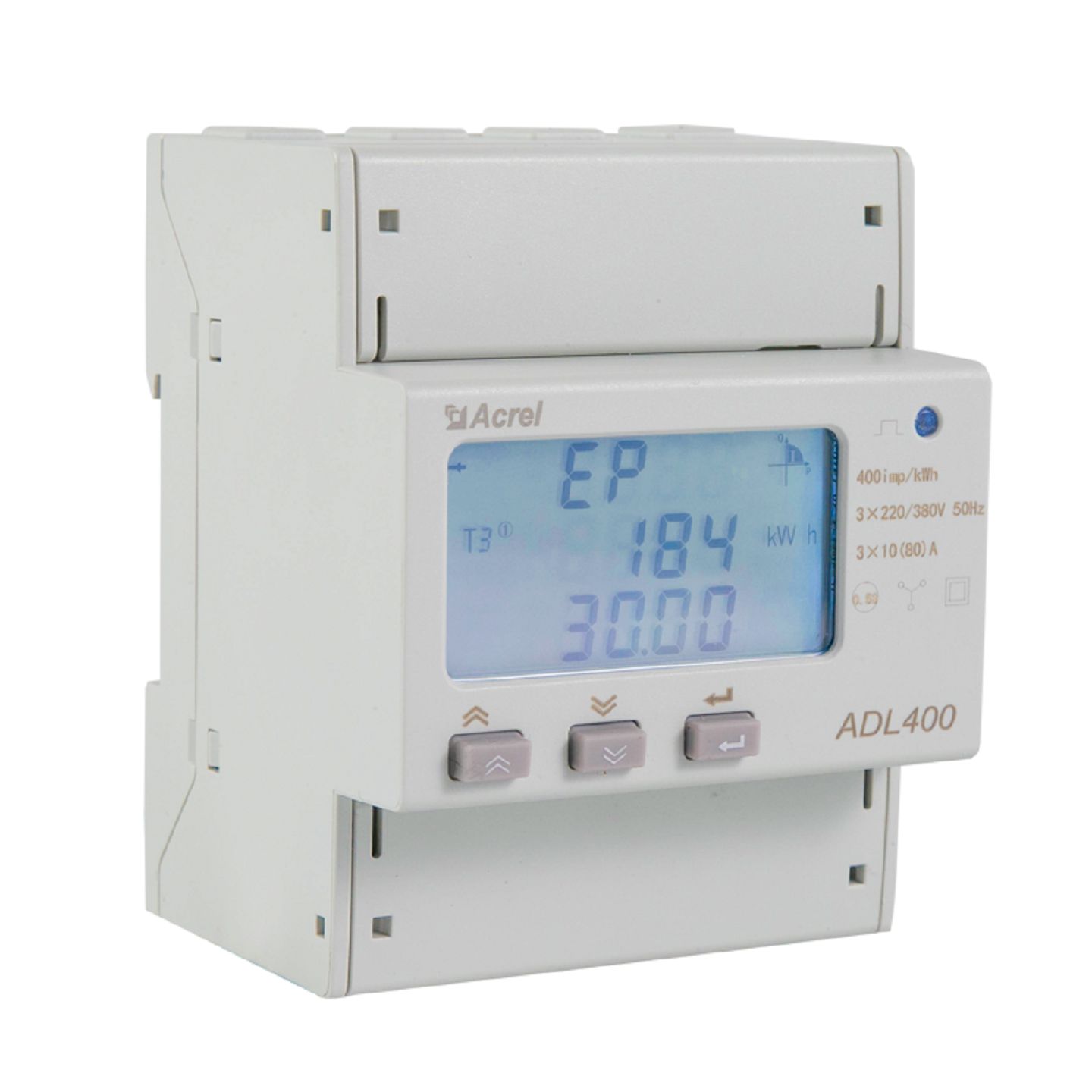

ENERGY METER MODBUS RTU ACREL ADL400
3P3P, 3P4W, Kwh Cl.0.5 KVARh Cl 2
3X220/380V, 57.7/100 V
3×1(6)A (via CT) ,3×10(80)AC (Direct)
Communication: RS485(MODBUS-RTU)s

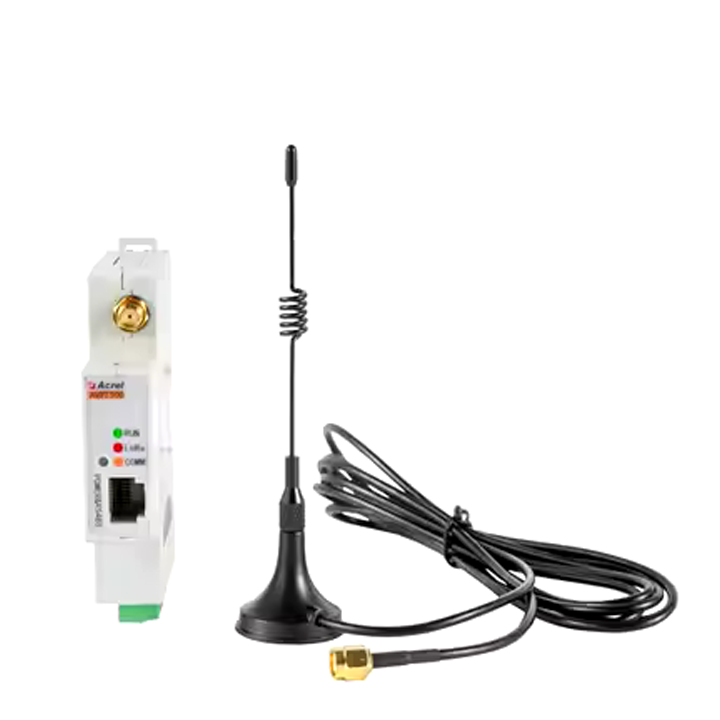

4G/LORA MODEM ACREL AWT100-4G/LORA
Upstream Methods: 4G LTE/ LoRA
Upstream Protocol: MODBUS-TCP, MQTT
Downstream Methods: RS485 Interface
Support: Up to 20~25 Acrel Devices with RS485 (MODBUS-RTU)
Power Supply: 24Vdc

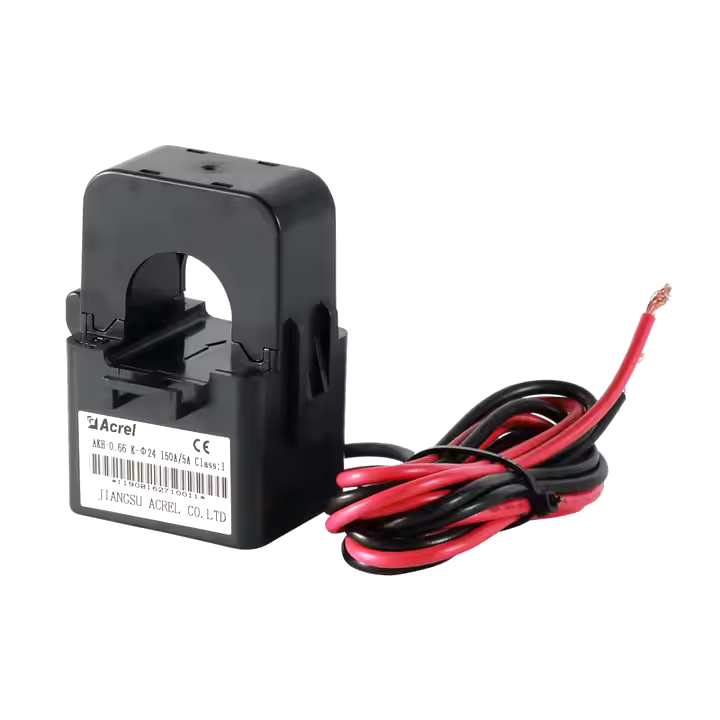

SPLIT CORE CT
ACREL AKH-0.66/K-φ24-A
Installation: Split-core type/clamp
Primary Current Input: 150-300A AC
Secondary Current Output: 5A AC
Accuracy: Class 1.0
Standard&Certificate: UL
IOIT ENERGY MANAGEMENT
Application Substation, building, telecommunication base station, industrial energy consumption, intelligent lighthouse, operation and maintenance of power. Connect to all Acrel devices via 4G, LoRA and MQTT TCP Energy consumption, billing and forecast

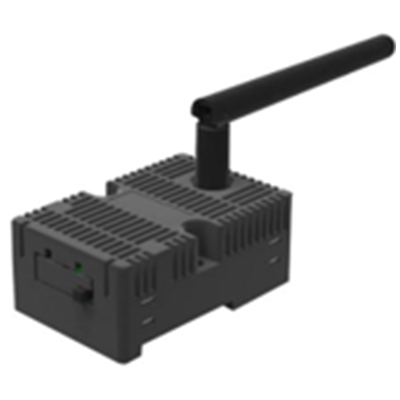

Temperature Monitoring / EWS
Temperature Monitoring on Critical spots in MV panels of Substation, Sensors installed in CB fingers, busbar, cable termination, cabinets wall both magnetic and strapped attachment and wirelessly monitored by power meter (RTU). When Spot’s temperature raise and reach the pre programmed limit RTU will send notification to Scada masters or IoT application via Internet or cellular as Early warning for users to do further action

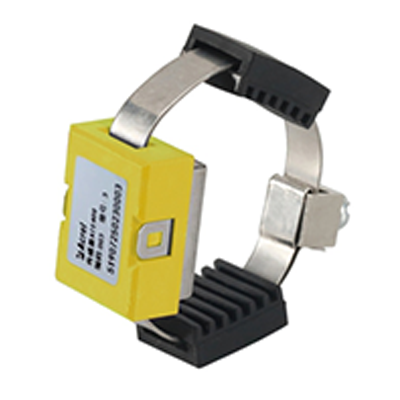

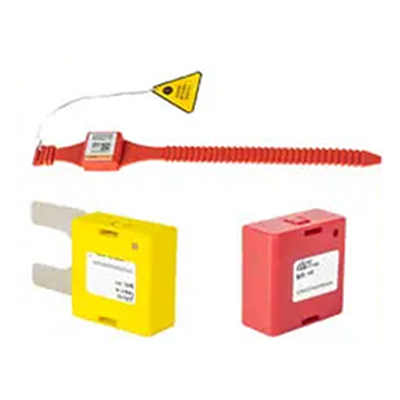

Magnetic and Strapped Battery Power
CT Induction (No Battery)
